Aluminum Tread Plate

As the progress of production modernization, from daily life to buildings and vehicles, aluminum tread plate is required according to the application and aesthetic requirements. Mingtai offers 1-8000 series aluminum tread plates with diverse patterns catering to customer demands. The common patterns include one bar, two bar, three bar and five bar, orange peel and diamond compass, etc. Other patterns can also be customizable following customer needs.

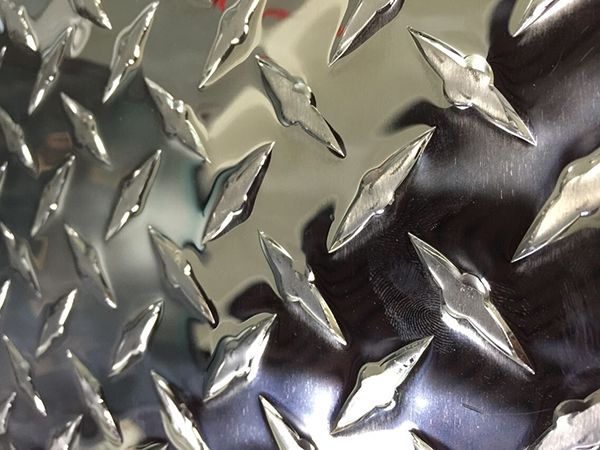

One barOne bar

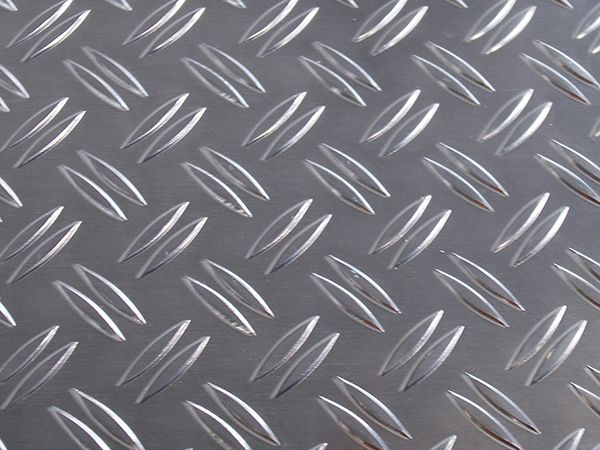

Two barTwo bar

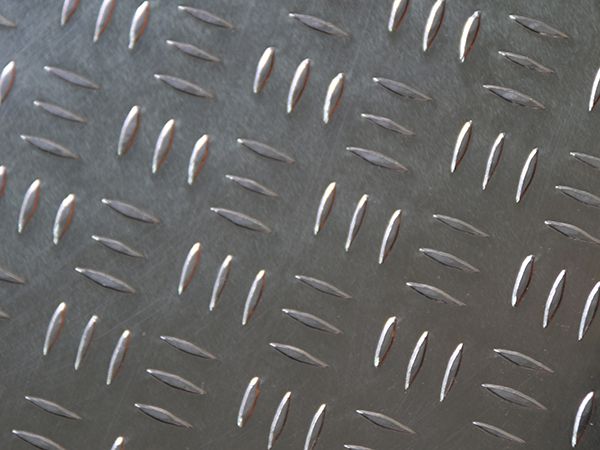

Three barThree bar

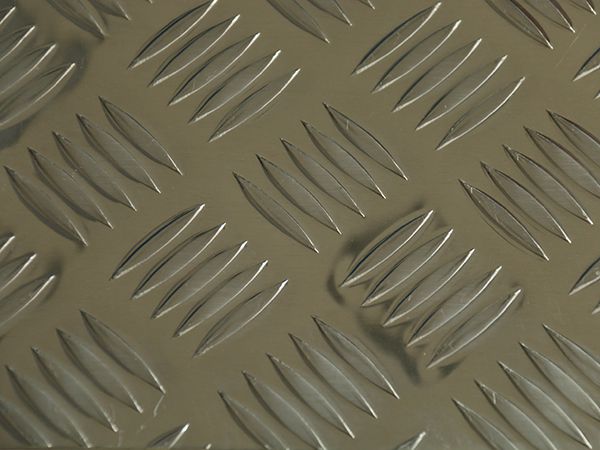

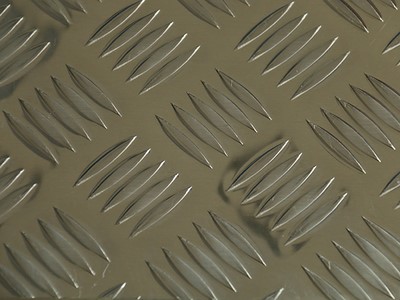

Five barFive bar
Request a Quote
Aluminum tread plate options
  • 1100 aluminum tread plate
  • 3003 aluminum tread plate
  • 4017 aluminum tread plate
  • 5052 aluminum tread plate
  • 6061 aluminum tread plate
  • Other aluminum tread plates are also available following your demands.
Sizes available
  • Gauge: 1.0-9.6mm
  • Width: 30-1850mm
  • Length: 500-13000mm
  • Aluminum tread coil is also optional.
Temper
  • 1XXX series, 3XXX series, 4XXX series:
    H14 / H22 / H24 / H18 / H112 / H114 / O / H224 / 244
  • 5XXX series:
    H114 / H112 / O / H224 / H244 / H274 / H32
  • 6XXX series: T6 / H22 / H24
Features and uses of different aluminum tread plates
  • 1000 series aluminum tread plate is soft and of high quality and low price. Typical applications include cold storage, flooring, outer packing box, etc.
  • 3000 series aluminum tread plate is also called antirust aluminum plate. Its compressive strength is slightly higher than general aluminum tread plates. This series aluminum plate features antirust property, but its strength and corrosion resistance are inferior to 5000 series aluminum plates. Thus, this series aluminum tread plate is used in applications without strict antirust requirements, such as large trucks, floor layer of cold storage.
  • 5000 series aluminum tread plates are alloyed with Mg, Ni and other elements, featuring excellent corrosion resistance, high strength and antirust performance. Typical applications include ships, vehicles and other cold and humid natural environments. Due to the high strength, this series tread plate has a certain load capacity.
Features and uses of aluminum tread plates of different patterns
  • Diamond aluminum plates (one bar/compass, two bar, three bar and five bar patterns) are characterized by excellent anti-slip performance due to the unique texture. Therefore, diamond aluminum plate is widely used for transportation, building and decoration, such as walkways, ramps, etc.
  • Orange peel aluminum tread plate usually undergoes chemical or electrochemical polishing, and then anodic oxidation treatment. Typical applications are refrigerator, air conditioner, packaging, etc.
Aluminum Tread Plate
Aluminum Tread Plate

Mingtai has been committed to the production and sales of aluminum alloy products. Main products are 1000-8000 series alloy aluminum sheet/plate, aluminum strip, aluminum foil, aluminum coil and aluminum tread plate, which covers almost all the market demands. Our products have been exported to Europe, America, Southeast, Asia and more than 60 countries and regions. Our advantage lies in our rich production experience, high quality trusted and supported by domestic and foreign customers, advanced equipment, professional sales team, close production and marketing cooperation, abundant funds and rapid development momentum.

  • Production base with an area of 1.3 million square meters
  • Annual production capacity of 4,000,000 tons of aluminum products
  • Six-roll cold rolling mill from German SMS Siemag for processing aluminum strip width of up to 2,650mm
Professional applications for Aluminum Plates

Professional Applications for Aluminum Plates

Aluminum alloy can have a extensive application, for example, 5M52 is AL-Mg system alloy aluminum plate, it is light in weight and has good fatigue strength, easy to process and weld, with high plasticity and corrosion resistance.
